70cc 90cc 110cc 125cc On Off Road Dirt Bike Front Disc Rear Drum Brake Ash Colour Body

    Buy cheap 70cc 90cc 110cc 125cc On Off Road Dirt Bike Front Disc Rear Drum Brake Ash Colour Body from wholesalers

    Buy cheap 70cc 90cc 110cc 125cc On Off Road Dirt Bike Front Disc Rear Drum Brake Ash Colour Body from wholesalers
    • Buy cheap 70cc 90cc 110cc 125cc On Off Road Dirt Bike Front Disc Rear Drum Brake Ash Colour Body from wholesalers

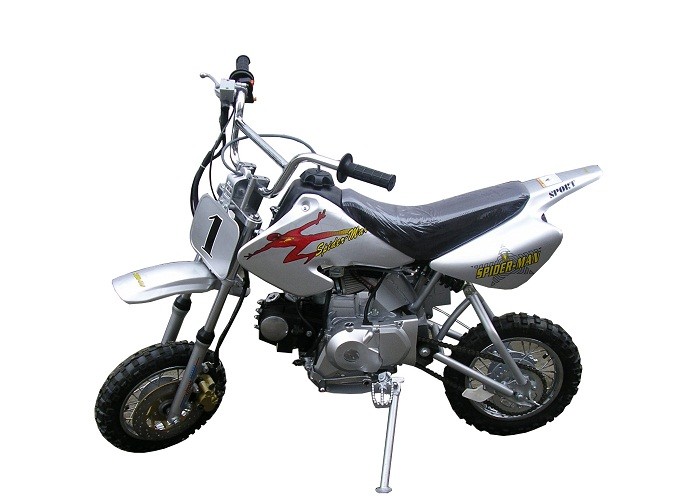

    70cc 90cc 110cc 125cc On Off Road Dirt Bike Front Disc Rear Drum Brake Ash Colour Body

    Ask Lasest Price
    Brand Name : cmoto
    Model Number : CM110PY-2
    Certification : ccc
    Payment Terms : T/T
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    70cc 90cc 110cc 125cc On Off Road Dirt Bike Front Disc Rear Drum Brake Ash Colour Body

    70cc 90cc 110cc 125cc On Off Road Dirt Bike Front Disc Rear Drum Brake Ash Colour Body

    Model:
    Dimension.(L×W×H)(mm)1860×720×860
    Wheel base(mm)1225
    Min ground clearance(mm)180
    Seat height(mm)760
    Turning angle<48°
    Min turning radius(mm)1860
    Front/rear sprocket teeth14/35
    Gearshift4-forward
    Fuel tank(L)9L
    Fuel TypeGasoline
    Max. Load Capacity(kg)150
    Dead Weight(kg)93
    Displacement/Power(ml/kw):200cc
    Eco fuel consumption(L/100km)2.2L
    Brake Mode:Front WheelDisc brake
    Rear WheelDrum brake
    Front WheelManual
    Brake Operation ModeRear Wheelkick
    Wheel Rim TypeFront spoke wheel: 2.50-12
    Rear spoke wheel: 2.50-12
    Tire typeWith tube
    Front tire100/90-12
    Rear tire100/90-12
    Head light12V 35W/35W
    Winker12V 10W
    Battery(mm)Maintenance Free: YTX5L-BS 114×71×106
    Engine Model152FMH
    Engine Type1-Cylinder, 4-stroke, air-cool, Single Over Head Camshaft
    StartElectric and kick
    IgnitionCDI
    Bore×Stroke52.4×49.5
    Displacement(ml)107
    Compression rate8.8:1
    Magneto12V 6 head, full phase
    Oil Capacity(ml)800
    Spark plugA7TC
    Spark clearance(mm)0.6~0.7
    Valve clearance(mm)0.05~0.06
    Lubriation typePress and splash
    CarburetorPZ19
    TransmissionConstant mesh, 4-forward, with high shift protection
    Clutch typeAutomatic, wet type, offcenter
    Initial rate3.722
    Gears rate1st: 3.273,2nd: 1.938,3rd: 1.350,4th: 1.043
    Final transChain
    Rotation directionFacing shaft, unclock wise
    Size(mm)477×395×280
    Net Weight(kg)25
    Rated Power4.6KW(7500r/min±5%)
    Max Power5.0KW(8000r/min±5%)
    Max Torque6.5N·m(5500-6500r/min)
    Min fuel comsumption(g/kw.h)367




    Motorcycle Selling Points:

    1.The new gearshift structure design make the gearshift is easy to operate, and with clear gear, to prevent the possibility of chaos gear and cross-gear from the structure.

    2.We can assure you of both the price and quality are the best.

    3.Prompt delivery time.

    4.Our products are will received at home and abroad. Mainly exported to more than 100 countries and regions in Europe, Africa, Middle East and south Ease Asia.

    5.Despite the fine quality, our prices are always competitive, being an experienced manufacturer, we know how to guarantee the quality, and control the cost at the same time.

    6.OME service are welcomed. We can do your logo if you can order a container and design unique stickers for you or you can provide with your design.

    70cc 90cc 110cc 125cc On Off Road Dirt Bike Front Disc Rear Drum Brake Ash Colour Body
    Our Service
    1. Q: Can I order sample?
    A: Yes, we accept sample for trial order.
    2. Q: What’s the delivery time?
    A: It usually takes about 25 to 30 days. But the exact delivery time is different for different order quantity.
    3. Q: Which colors will be available?
    A: Normally, we will introduce the most popular colors to customers. And we are able to make colors according to customer’s demands.
    4. Q: Can I use my logo on the product?
    A: Yes, we can make the customers’ logo on the motorcycle.
    5. Q: What is payment
    A: TT and LC is accepted.

    Why should you choose us?

    1. We offer outstanding products:
    · High quality and reasonable price.
    · Strong power and low engine consumption.
    · Stable and durable frame for cargo tricycle.
    · Electrophoresis dipping process paint, anti-corrosion ability is significant, ensure color durability.
    · Super loading ability, suitable for bad or mountain roads driving.
    2. Choose us , you can get:
    · Professional quality control system, ensure each part with our best quality.
    · Perfect production assembly line, ensure delivery on time.
    · Outstanding export teamwork, ensure thorough after-sale services.
    · Specialized in cargo tricycles design, manufacture and export more than 8 years, had built an excellent business reputation.
    · Well know about foreign market, especially South America, Africa, Southeast Asia, and Middle East.
    · "Do our best, be your best" is our aim. Your trust, we treasure.
