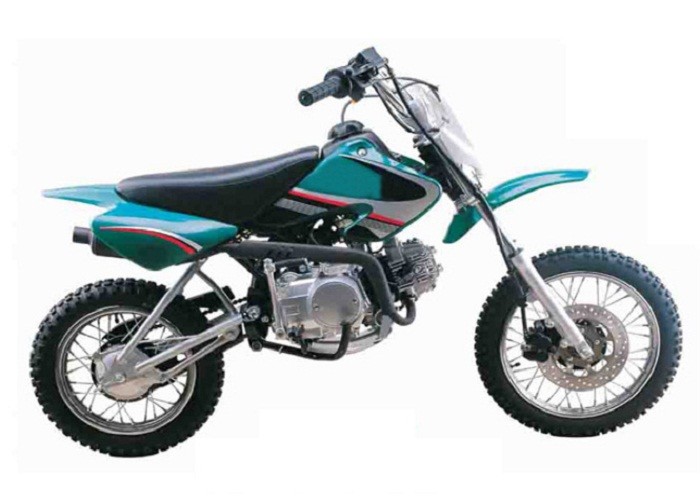

4 Stroke 110cc Off Road Motocross Bikes , 4 Stroke Off Road Bikes Front Disc Rear Drum

    Buy cheap 4 Stroke 110cc Off Road Motocross Bikes , 4 Stroke Off Road Bikes Front Disc Rear Drum from wholesalers

    Buy cheap 4 Stroke 110cc Off Road Motocross Bikes , 4 Stroke Off Road Bikes Front Disc Rear Drum from wholesalers
    • Buy cheap 4 Stroke 110cc Off Road Motocross Bikes , 4 Stroke Off Road Bikes Front Disc Rear Drum from wholesalers

    4 Stroke 110cc Off Road Motocross Bikes , 4 Stroke Off Road Bikes Front Disc Rear Drum

    Ask Lasest Price
    Brand Name : cmoto
    Model Number : CM110PY-2
    Certification : ccc
    Payment Terms : T/T
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    4 Stroke 110cc Off Road Motocross Bikes , 4 Stroke Off Road Bikes Front Disc Rear Drum

    4 stroke green color front disc rear drum brake off road motorcycle

    Model:
    Dimension.(L×W×H)(mm)1860×720×860
    Wheel base(mm)1225
    Min ground clearance(mm)180
    Seat height(mm)760
    Turning angle<48°
    Min turning radius(mm)1860
    Front/rear sprocket teeth14/35
    Gearshift4-forward
    Fuel tank(L)9L
    Fuel TypeGasoline
    Max. Load Capacity(kg)150
    Dead Weight(kg)93
    Displacement/Power(ml/kw):200cc
    Eco fuel consumption(L/100km)2.2L
    Brake Mode:Front WheelDisc brake
    Rear WheelDisc brake
    Front WheelManual
    Brake Operation ModeRear Wheelkick
    Wheel Rim TypeFront spoke wheel: 2.50-12
    Rear spoke wheel: 2.50-12
    Tire typeWith tube
    Front tire100/90-12
    Rear tire100/90-12
    Head light12V 35W/35W
    Winker12V 10W
    Battery(mm)Maintenance Free: YTX5L-BS 114×71×106
    Engine Model152FMH
    Engine Type1-Cylinder, 4-stroke, air-cool, Single Over Head Camshaft
    StartElectric and kick
    IgnitionCDI
    Bore×Stroke52.4×49.5
    Displacement(ml)107
    Compression rate8.8:1
    Magneto12V 6 head, full phase
    Oil Capacity(ml)800
    Spark plugA7TC
    Spark clearance(mm)0.6~0.7
    Valve clearance(mm)0.05~0.06
    Lubriation typePress and splash
    CarburetorPZ19
    TransmissionConstant mesh, 4-forward, with high shift protection
    Clutch typeAutomatic, wet type, offcenter
    Initial rate3.722
    Gears rate1st: 3.273,2nd: 1.938,3rd: 1.350,4th: 1.043
    Final transChain
    Rotation directionFacing shaft, unclock wise
    Size(mm)477×395×280
    Net Weight(kg)25
    Rated Power4.6KW(7500r/min±5%)
    Max Power5.0KW(8000r/min±5%)
    Max Torque6.5N·m(5500-6500r/min)
    Min fuel comsumption(g/kw.h)367


    4 Stroke 110cc Off Road Motocross Bikes , 4 Stroke Off Road Bikes Front Disc Rear Drum

    Payment & Delivery
    Payment term 30% advanced payment by TT, balance should be paid before delivery.
    Port FOB Shanghai
    Delivery Time 20-25 Days after receiving advance payment
    Our Service
    1. Q: Can I order sample?
    A: Yes, we accept sample for trial order.
    2. Q: What’s the delivery time?
    A: It usually takes about 25 to 30 days. But the exact delivery time is different for different order quantity.
    3. Q: Which colors will be available?
    A: Normally, we will introduce the most popular colors to customers. And we are able to make colors according to customer’s demands.
    4. Q: Can I use my logo on the product?
    A: Yes, we can make the customers’ logo on the motorcycle.
    5. Q: What is payment
    A: TT and LC is accepted.

    Why should you choose us?

    1. We offer outstanding products:
    · High quality and reasonable price.
    · Strong power and low engine consumption.
    · Stable and durable frame for cargo tricycle.
    · Electrophoresis dipping process paint, anti-corrosion ability is significant, ensure color durability.
    · Super loading ability, suitable for bad or mountain roads driving.
    2. Choose us , you can get:
    · Professional quality control system, ensure each part with our best quality.
    · Perfect production assembly line, ensure delivery on time.
    · Outstanding export teamwork, ensure thorough after-sale services.
    · Specialized in cargo tricycles design, manufacture and export more than 8 years, had built an excellent business reputation.
    · Well know about foreign market, especially South America, Africa, Southeast Asia, and Middle East.
    · "Do our best, be your best" is our aim. Your trust, we treasure.
